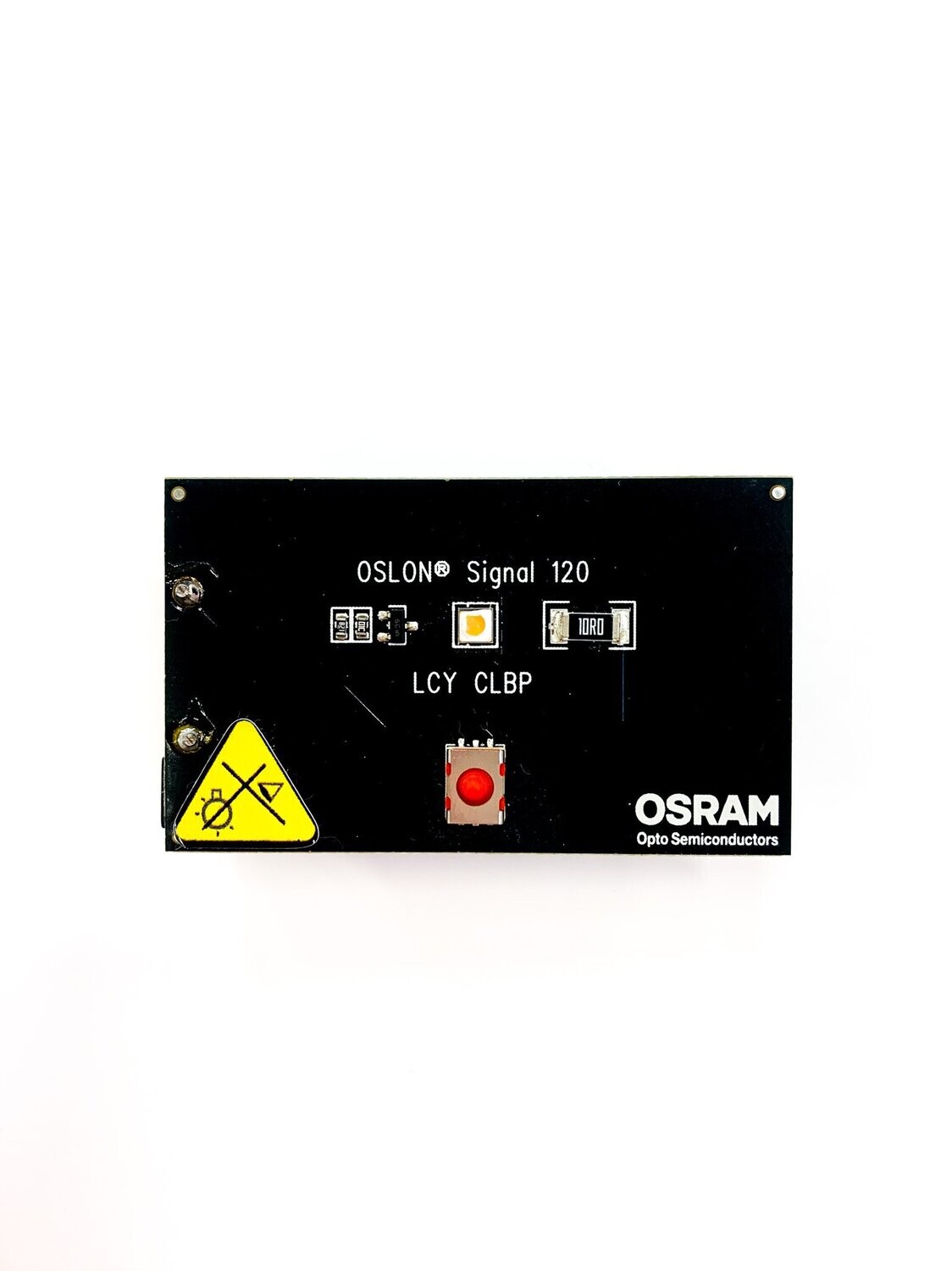

Demo Case Osram Oslon Signal 120 LY CKBP

Typ

Lichtstrom
I _F = 350 mA
Φ _V [lm]

Bestellnummer

LY CKBP-JYKX-46-1

52 ... 82

Q65111A5613

LY CKBP-HYJZ-35-1

33 ... 71

Q65111A5615

Bezeichnung

Symbol

Werte

Einheit

Betriebstemperatur

T _op

-40 ... 120

°C

Lagertemperatur

T _stg

-40 ... 120

°C

Sperrschichttemperatur für Kurzzeitanwendung

T _j

175

°C

Sperrschichttemperatur

T _j

150

°C

Durchlassstrom (T _S = 25 °C)

I _F

30 ... 1000

mA

Stoßstrom
(t ≤ 10 µs; D = 0.005; Ts = 25 °C)

I _FM

2000

mA

Sperrspannung (T _S = 25 °C)

V _R

5

V

ESD Festigkeit

(acc. to ANSI/ESDA/JEDEC JS-001 - HBM, Class 3B)

V _ESD

2

kV

Bezeichnung

Symbol

Werte

Einheit

Wellenlänge d. emittierten Lichtes
(typ.)

λ _peak

597

nm

Dominantwellenlänge

λ _dom

590

nm

Spektrale Bandbreite b. 50% I _{rel max}

(typ.)

∆λ

18

nm

Abstrahlwinkel bei 50 % I _V

(typ.)

2ϕ

125

°

Durchlassspannung (min.)
(typ.)

(max.)

VF

VF

VF

2.00
2.25
2.60

V
V
V

Realer Wärmewiderstand Sperrschicht / Lötpad

R _{th JS real}

9.6

10.8

K/W

Elektrischer" Wärmewiderstand Sperrschicht / Lötpad

(with efficiency η _e = 30 %)

R _{th JS el}

8.2

9.2

K/W

Gruppe

Lichtstrom (min.) ΦV [lm]

Lichtstrom (max.) ΦV [lm]

Lichtstärke (typ.) I _V [cd]

HY

33

39

11.9

HZ

39

45

13.9

JX

45

52

16

JY

52

61

18.6

JZ

61

71

21.8

KX

71

82

25.2

Gruppe

(min.) V _F [V]

(max.) V _F [V]

J3

2.00

2.15

M3

2.15

2.30

Q3

2.30

2.45

T3

2.45

2.60

Type

Luminous Flux
I _F = 350 mA
Φ _V [lm]

Ordering Code

LY CKBP-JYKX-46-1

52 ... 82

Q65111A5613

LY CKBP-HYJZ-35-1

33 ... 71

Q65111A5615

Parameter

Symbol

Values

Unit

Operating temperature range

T _op

-40 ... 120

°C

Storage temperature range

T _stg

-40 ... 120

°C

Junction temperature for short time applications *

T _j

175

°C

Junction temperature

T _j

150

°C

Forward current (T _S = 25 °C)

I _F

30 ... 1000

mA

Surge current
(t ≤ 10 µs; D = 0.005; Ts = 25 °C)

I _FM

2000

mA

Reverse voltage (T _S = 25 °C)

V _R

5

V

ESD withstand voltage

(acc. to ANSI/ESDA/JEDEC JS-001 - HBM, Class 3B)

V _ESD

2

kV

Parameter

Symbol

Values

Unit

Wavelength at peak emission
(typ.)

λ _peak

597

nm

Dominant Wavelength

λ _dom

590

nm

Spectral bandwidth at 50% I _{rel max}

(typ.)

∆λ

18

nm

Viewing angle at 50 % I _V

(typ.)

2ϕ

125

°

Forward voltage
(min.)
(typ.)

(max.)

VF

VF

VF

2.00
2.25
2.60

V
V
V

Real thermal resistance junction / solder point

R _{th JS real}

9.6

10.8

K/W

"Electrical" thermal resistance junction / solder point

(with efficiency η _e = 30 %)

R _{th JS el}

8.2

9.2

K/W

Group

Luminous Flux (min.) ΦV [lm]

Luminous Flux (max.) ΦV [lm]

Luminous Intensity (typ.) I _V [cd]

HY

33

39

11.9

HZ

39

45

13.9

JX

45

52

16

JY

52

61

18.6

JZ

61

71

21.8

KX

71

82

25.2

Group

(min.) V _F [V]

(max.) V _F [V]

J3

2.00

2.15

M3

2.15

2.30

Q3

2.30

2.45

T3

2.45

2.60
