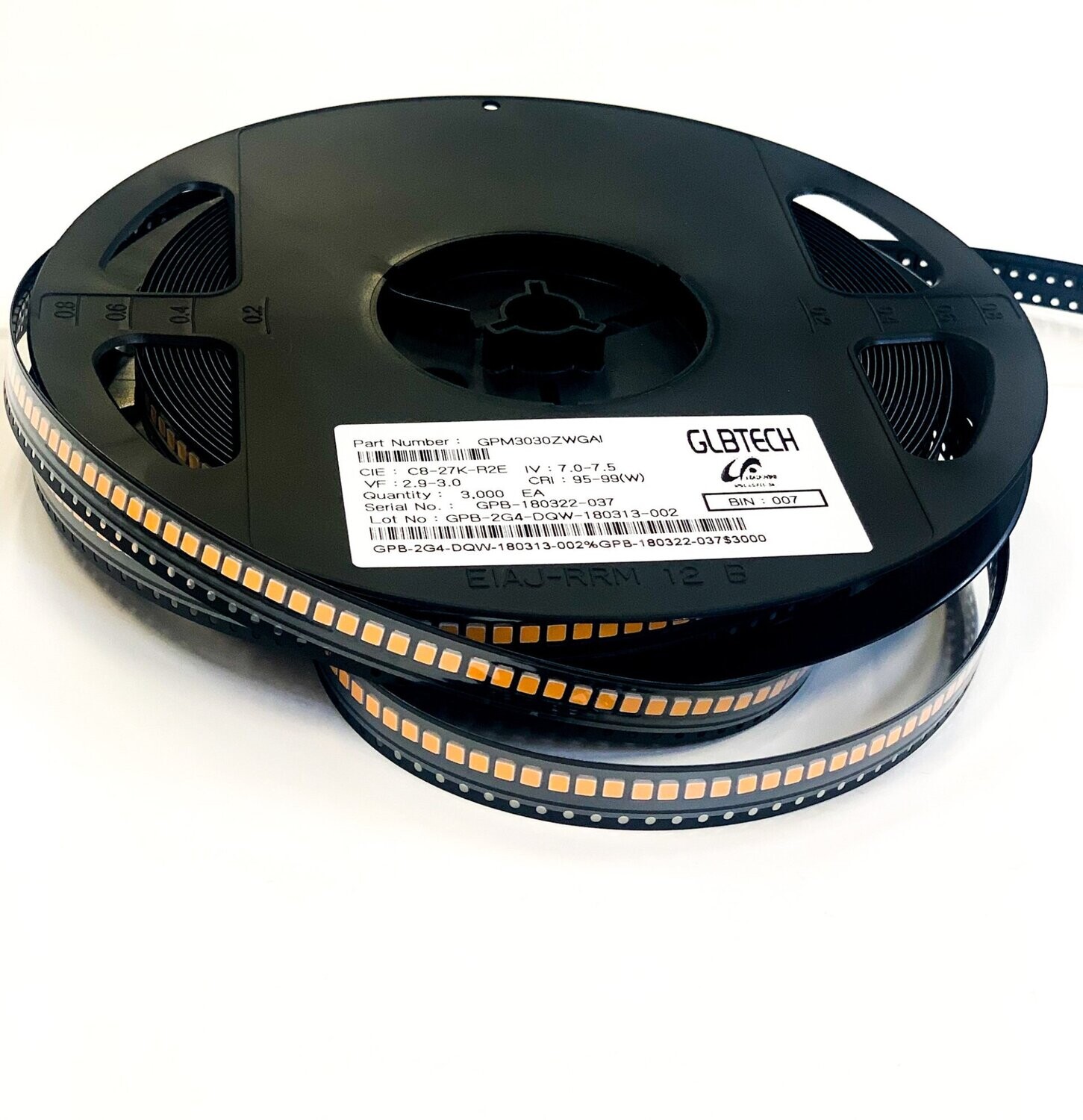

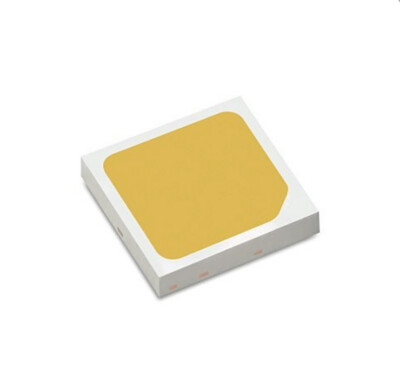

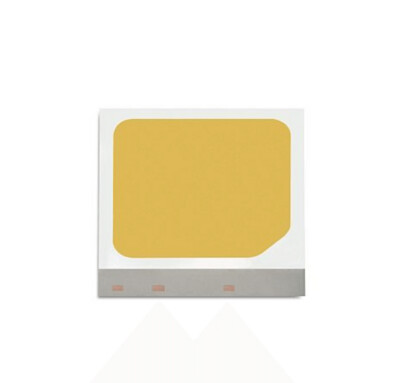

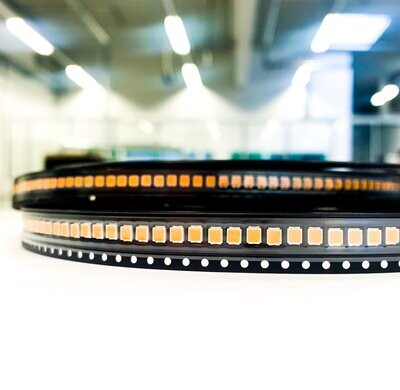

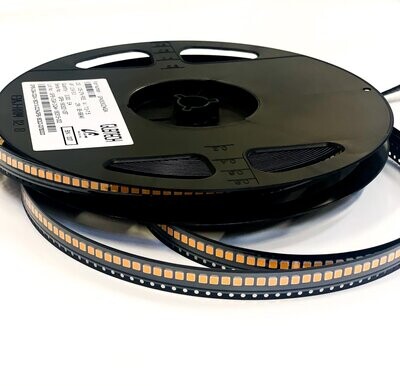

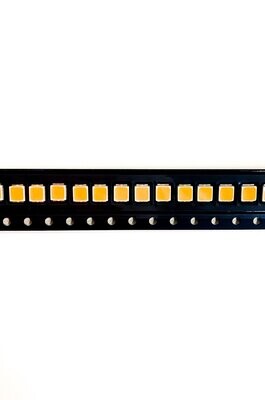

SMD LED GPM3030ZWGAI C8-27K-R2E

Artikel

Werkstoff

LED-Chip

InGaN-Basis

Draht

Au-Golddraht

Lead-Frame

Cu-Legierung mit Ag-Beschichtung

Verkapselung

Silikon

Gehäuse Polymer

Hitzebeständiger Thermoplast

Parameter

Symbol

Maximalwert, weiß

Einheit

Vorwärtsstrom

I _F

120

mA

Spitzenwert des gepulsten Vorwärtsstroms, (Tastverhältnis 1/10, Pulsbreite 10ms)

I _FP

200

mA

Verlustleistung, (bei Raumtemperatur )

P _DL

0.40

W

ESD-Empfindlichkeit (HBM)

E _SD

4000

V

Betriebstemperatur

T _OPR

-30 ~ +85

℃

Lagertemperatur

T _STG

-40 ~ +100

℃

Löttemperatur

T _SOL

Reflow-Löten :260°C /10s,
Handlöten : 350°C /3s

℃

Sperrschichttemperatur

T _j

110

℃

CCT

Rank

Lichtintensität

Iv [ cd ), Min.

Lichtintensität

Iv [ cd ), Max.

Lichtstrom

Φv [ lm ], Min

Lichtstrom

Φv [ lm ], Max.

Condition

6500 K

A

6.5

7.0

19.5

21.0

IF = 65mA

6500 K

B

7.0

7.5

21.0

22.5

IF = 65mA

6500 K

C

7.5

8.0

22.5

24.0

IF = 65mA

6500 K

D

8.0

8.5

24.0

25.5

IF = 65mA

Artikel

Einheit

CCT

Rang

Min.

Typ.

Max.

Bedingung

Vorwärtsspannung

V

2,700K ~ 6,500K

1

2.70

-

2.80

IF=65mA

Vorwärtsspannung

V

2,700K ~ 6,500K

2

2.80

-

2.90

IF=65mA

Vorwärtsspannung

V

2,700K ~ 6,500K

3

2.90

-

3.00

IF=65mA

Vorwärtsspannung

V

2,700K ~ 6,500K

4

3.00

-

3.10

IF=65mA

Farbwiedergabe-Index

Ra

W

95.0

-

-

IF=65mA

Abstrahlwinkel

°

-

120

-

IF=65mA

Item

Material

LED Chip

InGaN base

Wire

Au gold wire

Lead-Frame

Cu alloy with Ag plating

Encapsulation

Silicone

Package Polymer

Heat-resistant Thermal plastic

Parameters

Symbol

Maximum Value, White

Unit

Forward Current

I _F

120

mA

Peak Pulsed Forward Current, (Duty 1/10, Pulse width 10ms)

I _FP

200

mA

Power Dissipation, (At Room Temperature )

P _DL

0.40

W

ESD Sensitivity (HBM)

E _SD

4000

V

Operating Temperature

T _OPR

-30 ~ +85

℃

Storage Temperature

T _STG

-40 ~ +100

℃

Soldering Temperature

T _SOL

Reflow Soldering :260°C /10s,
Hand Soldering : 350°C /3s

℃

Junction Temperature

T _j

110

℃

CCT

Rank

Luminous Intensity

Iv [ cd ), Min.

Luminous Intensity

Iv [ cd ), Max.

Luminous Flux

Φv [ lm ], Min

Luminous Flux

Φv [ lm ], Max.

Condition

2700 K

A

6.5

7.0

19.5

21.0

IF = 65mA

2700 K

B

7.0

7.5

21.0

22.5

IF = 65mA

2700 K

C

7.5

8.0

22.5

24.0

IF = 65mA

2700 K

D

8.0

8.5

24.0

25.5

IF = 65mA

Item

Unit

CCT

Rank

Min.

Typ.

Max.

Condition

Forward Voltage

V

2,700K ~ 6,500K

1

2.70

-

2.80

IF=65mA

Forward Voltage

V

2,700K ~ 6,500K

2

2.80

-

2.90

IF=65mA

Forward Voltage

V

2,700K ~ 6,500K

3

2.90

-

3.00

IF=65mA

Forward Voltage

V

2,700K ~ 6,500K

4

3.00

-

3.10

IF=65mA

Color Rendering Index

Ra

W

95.0

-

-

IF=65mA

Beam Angle

°

-

120

-

IF=65mA
